Support self-generation micro-grid application
Support with EMS system local control
Modular design easy to maintain and expand
Multiple protection for safer use
Supports cloud operation and maintenance

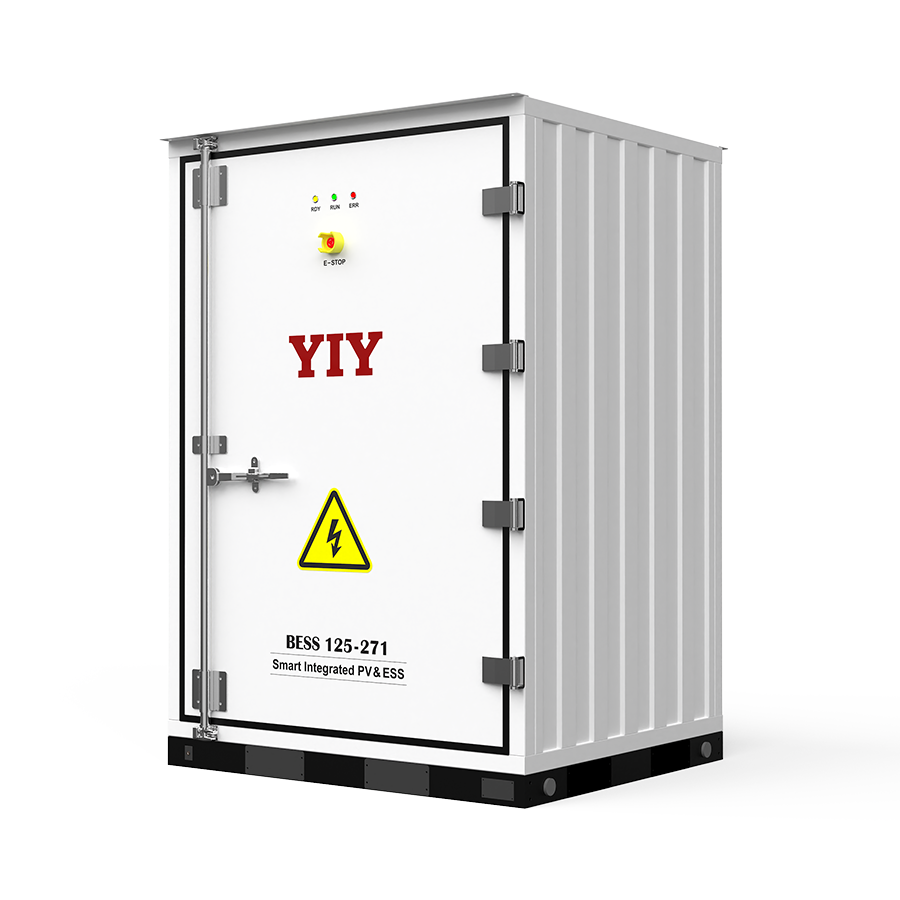

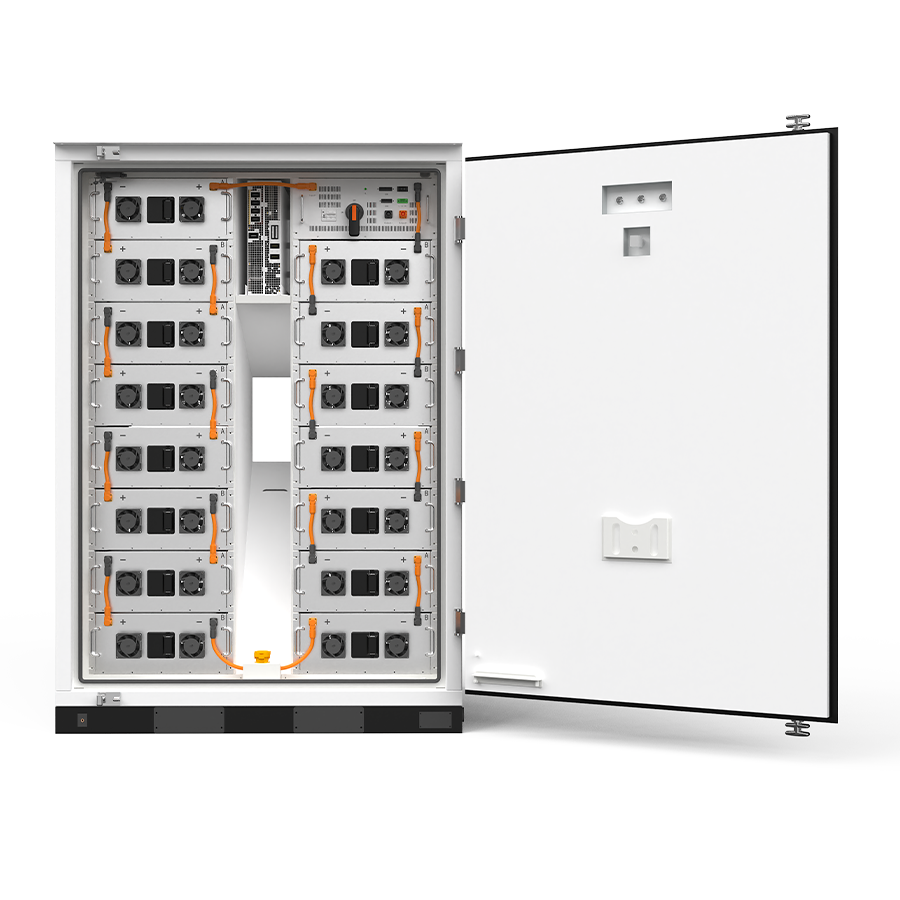

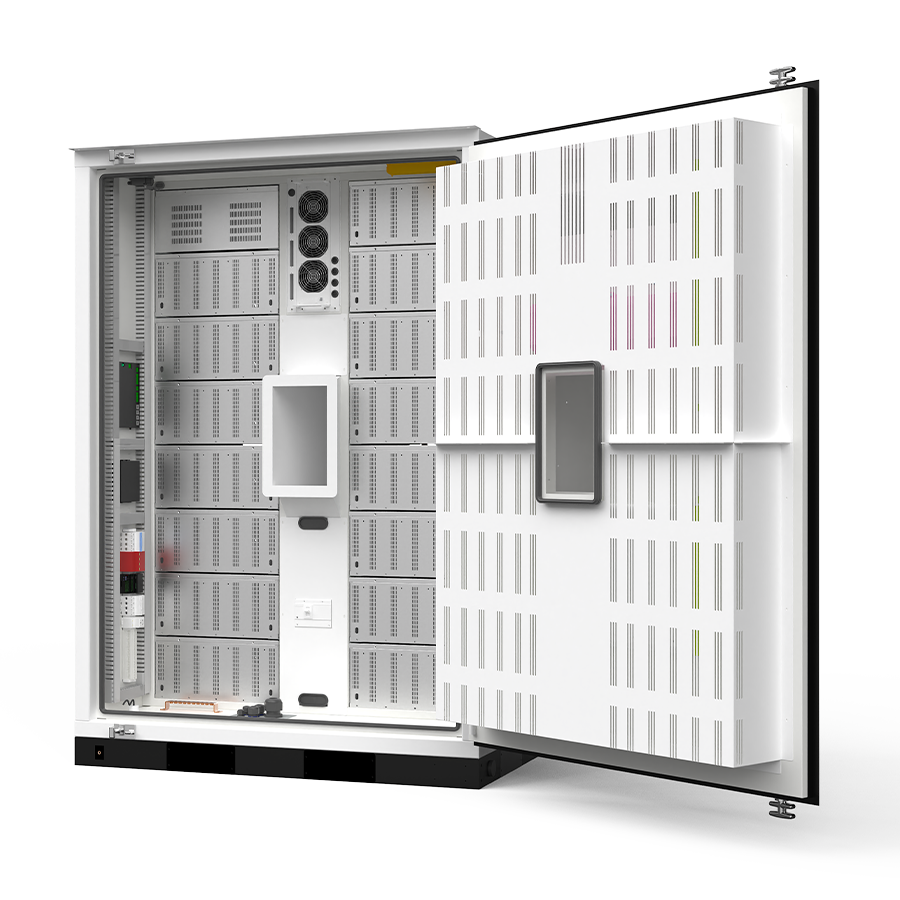

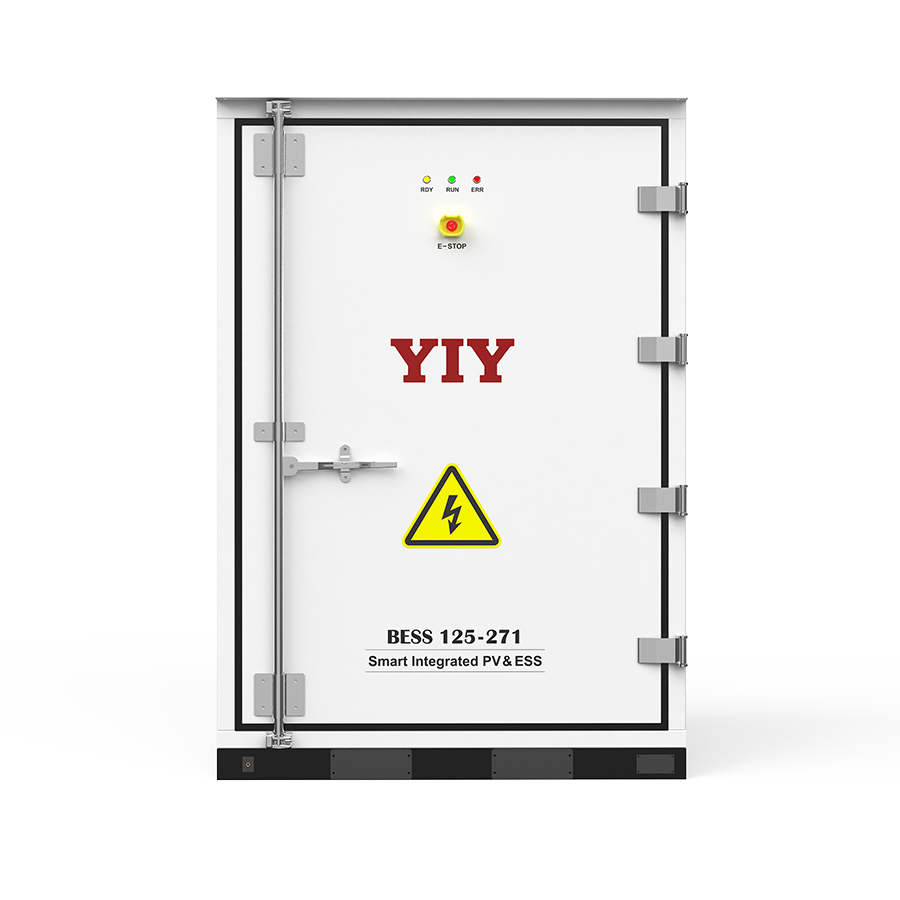

EQE BESS 125-271 all-in-one commercial and industrial ESS integrates PCS, BMS, EMS, battery, intelligent thermal management, power distribution, fire protection, etc. Its all-in-one design facilitates installation and O&M. Also, the system’s safety design ensures better battery performance and longer service life. Multiple cabinets can be directly connected in parallel for system expansion.

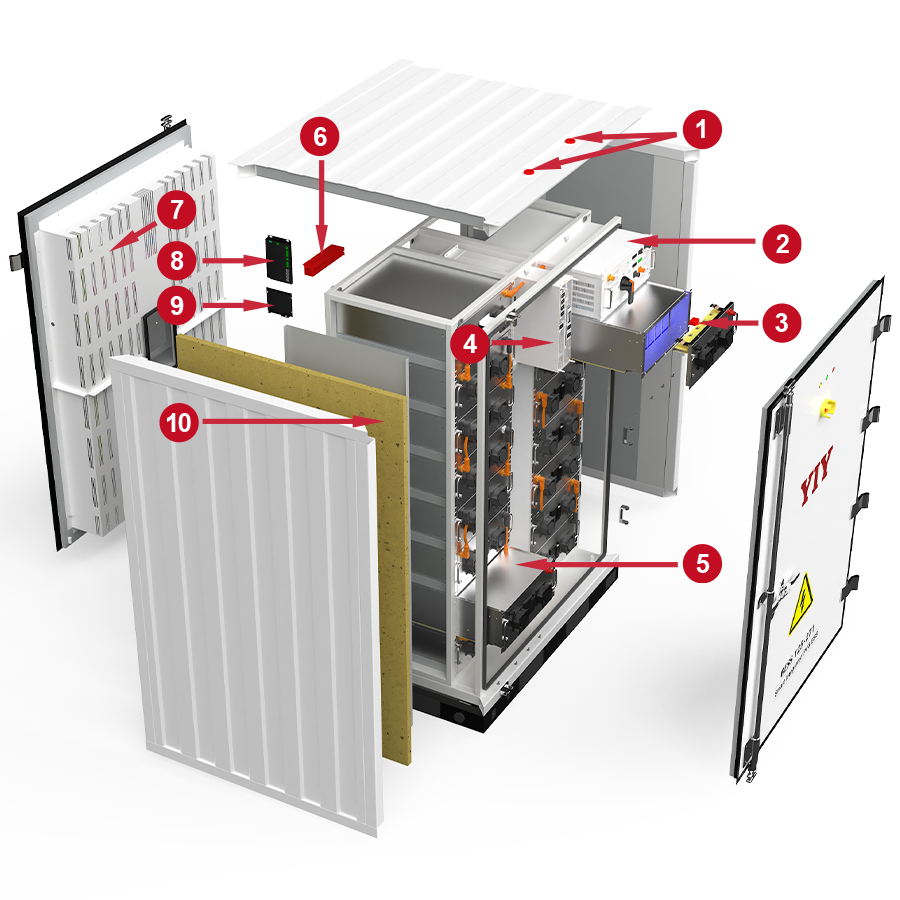

Fire control moduleinside each cabinet 06
Air conditioner 07
EMS 08
EMSU 09
Rock wool 10
01 Pressure relief valve
02 BMU
03 Fire control moduleinside each batterypack
04 PCS module
05 Battery pack*15 PCS
TECHNICAL PARAMETER
BESS 125-271
Nominal AC output power : 125KW
Total Battery Capacity : 271KWH
AC output voltage : 400V
DC voltage range : 756V~950V
Maximum efficiency : ≥98.5%
AC frequency : 50Hz/60Hz
PRODUCT CASE
