Support solar charging
Supports off-grid use
Modular design easy to maintain and expand
Switch time <10 ms
Generator automatic start/stop function
- Life cycle at least 4000 cycles
- Optional WIFI module for real-time remote monitoring· High reliability intelligent BMS
- Unique integrated inverter, MPPT and battery pack design
- Unique automatic calibration active banlancing technology BMS syestem
- LiFePO4 Battery inside
- High reliability intelligent BMS
- 51.2Vdc voltage output suitable for home energy storage system, communication stations and other applications

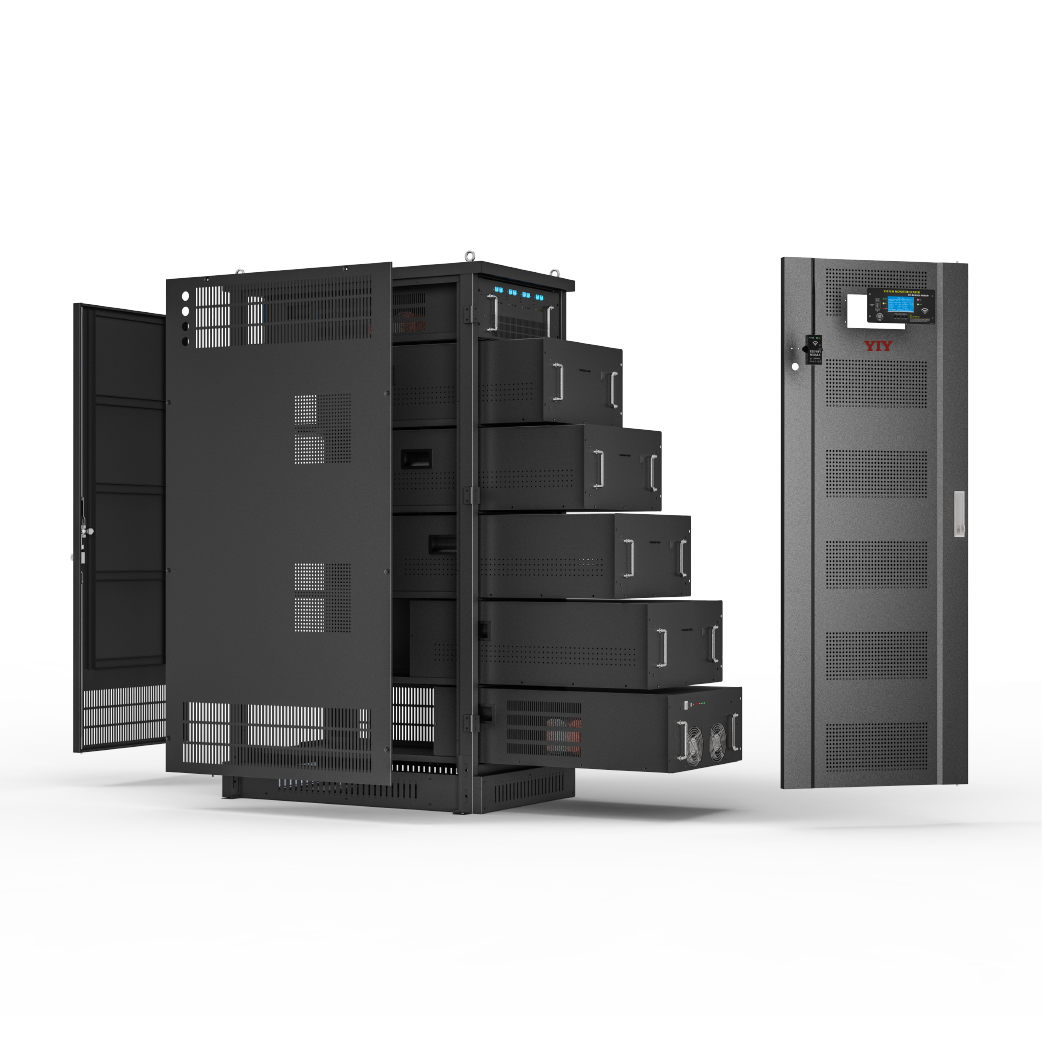

LiFePO4 Battery Pack 01
Low FrequencyPure WaveInverter/charger 02
MPPT solar controller 03
04 LCD Display
05 APP-WiFi module
TECHNICAL PARAMETER

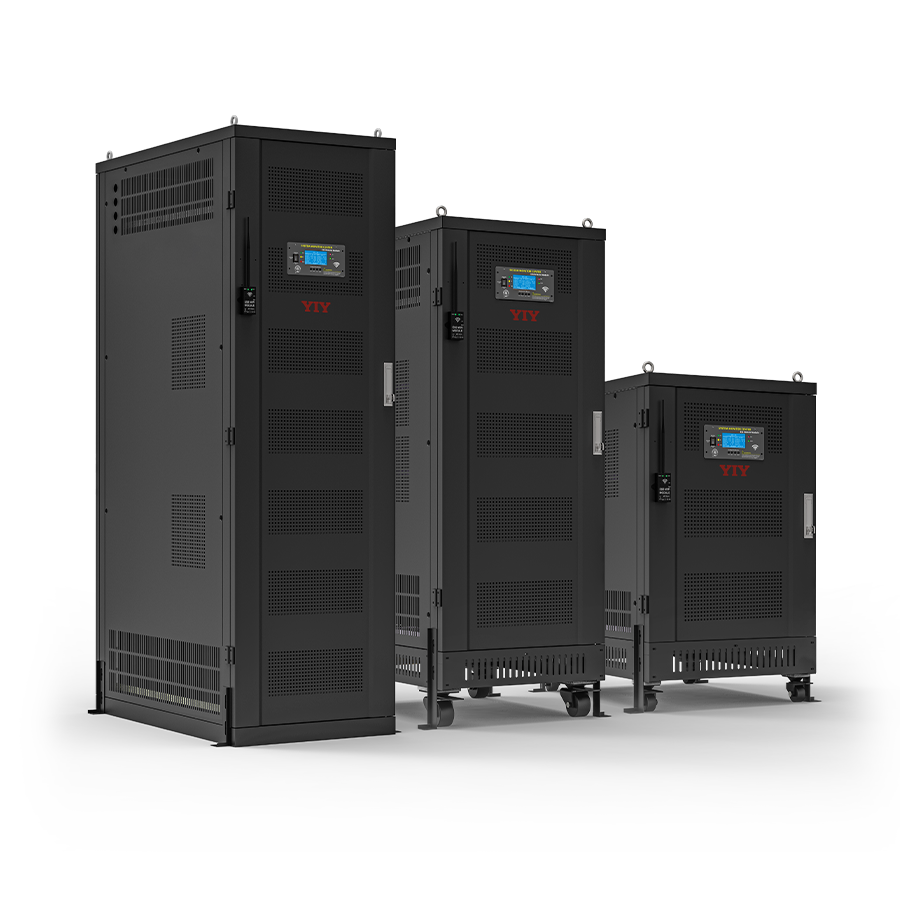

ESS Series
Rated voltage：51.2V

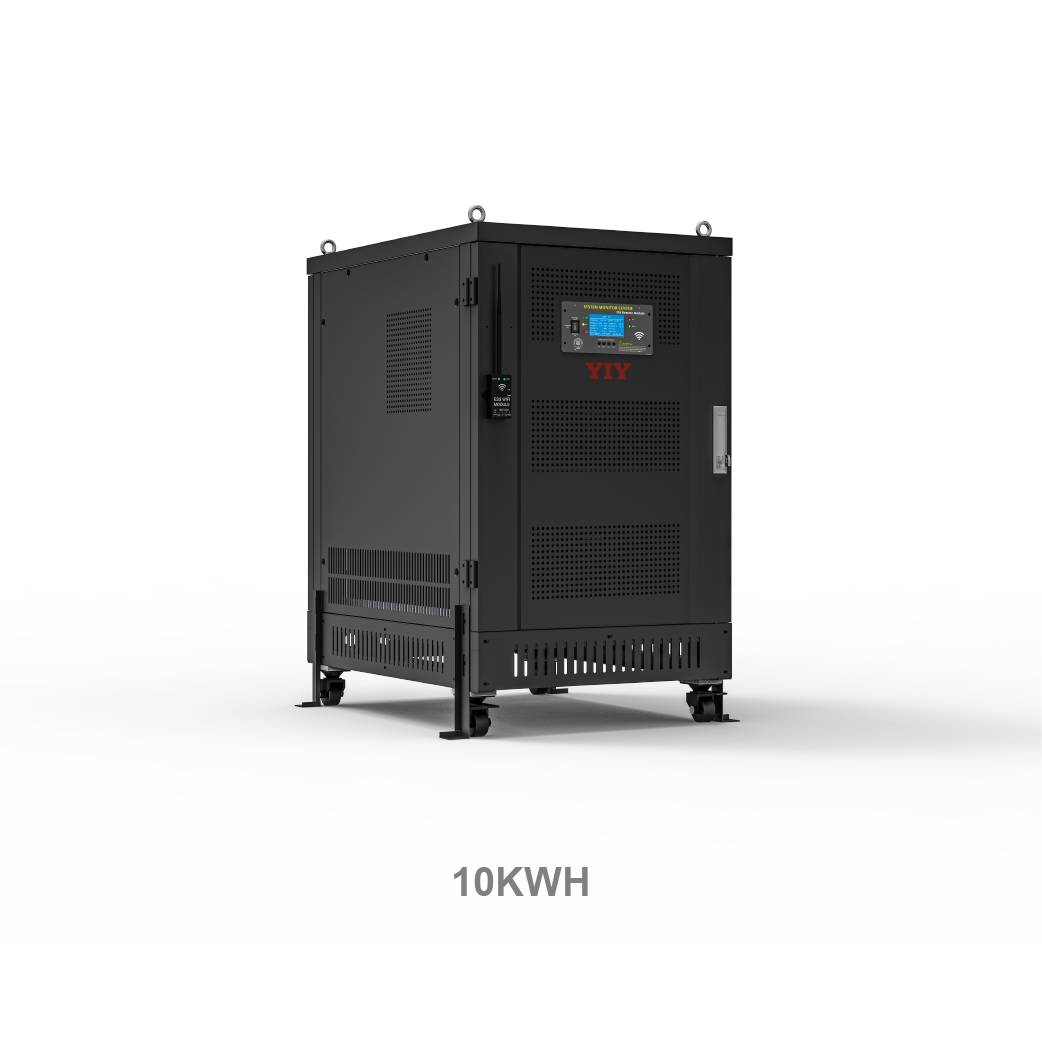

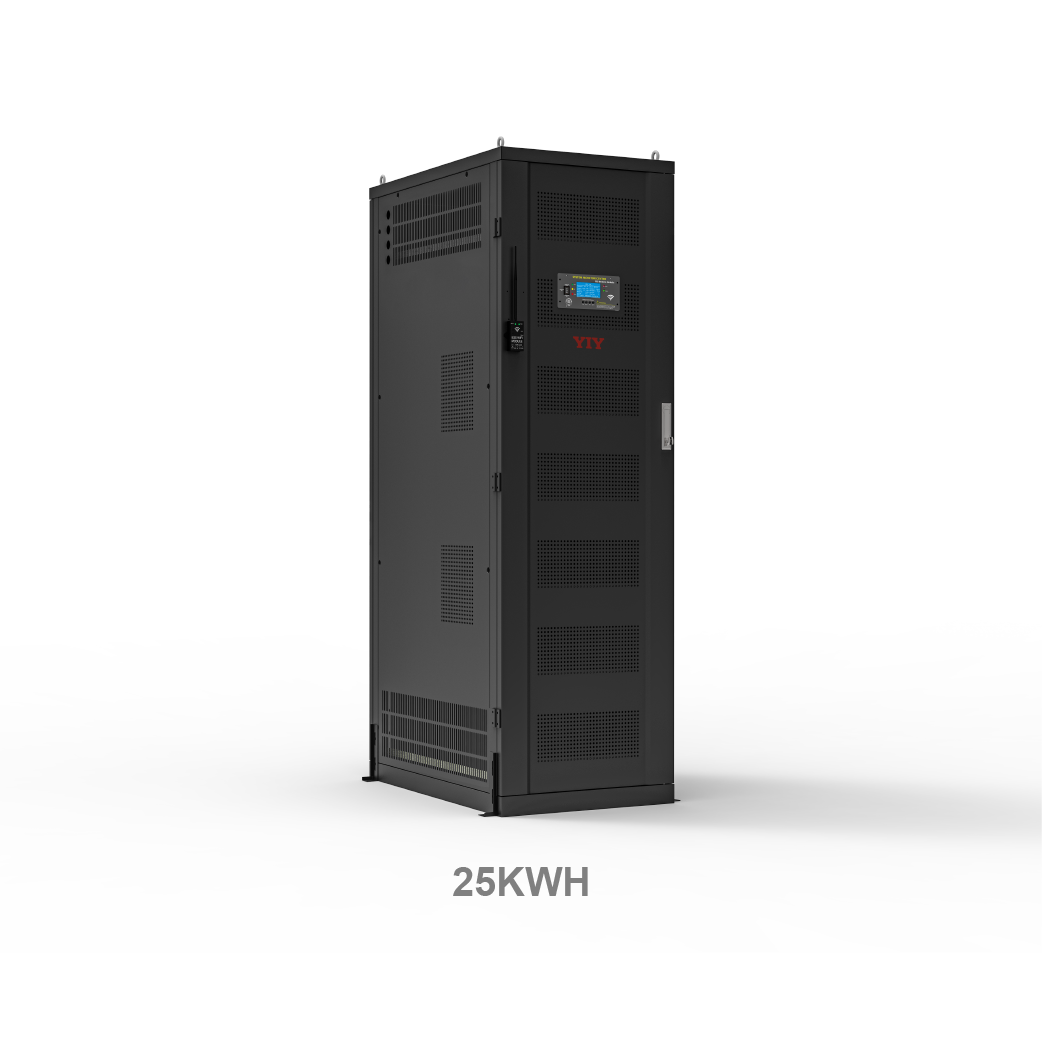

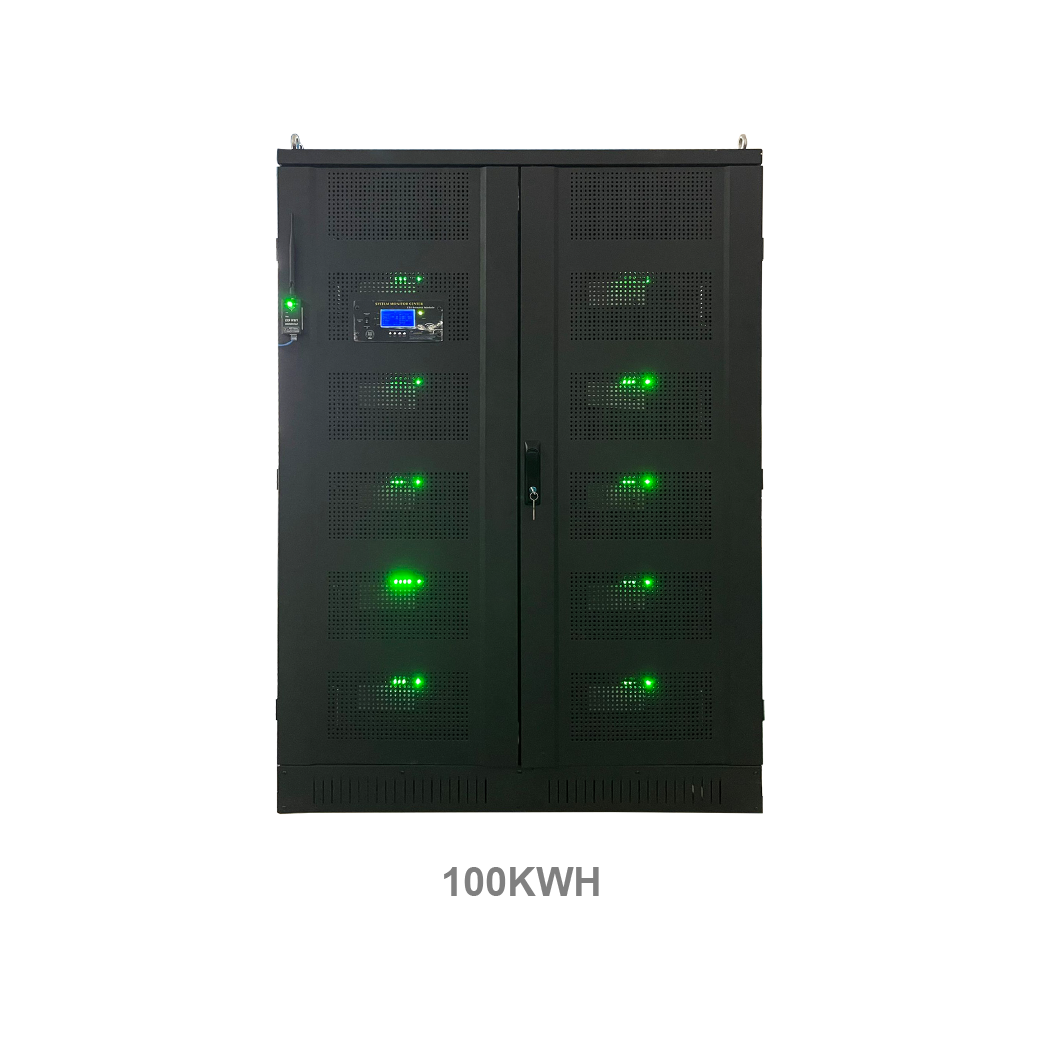

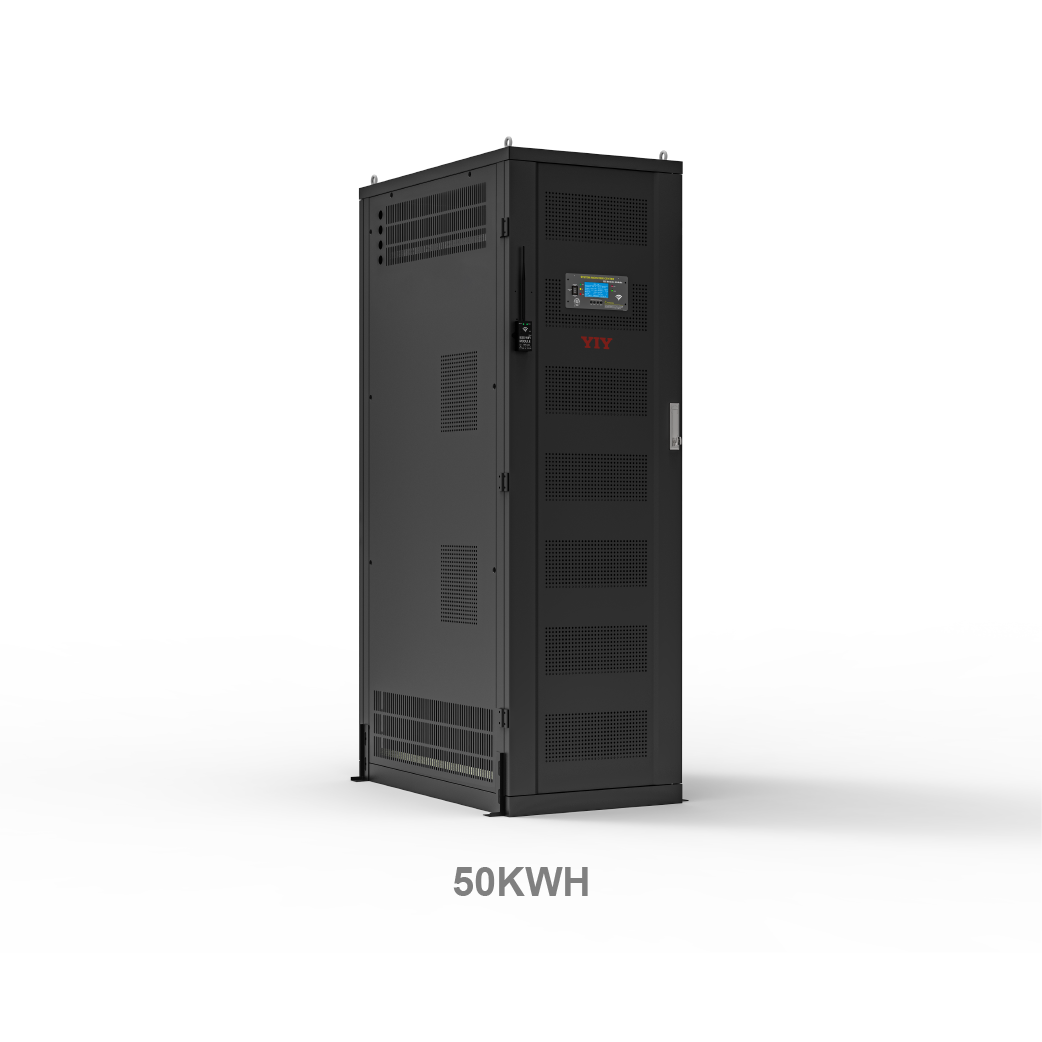

Rated energy：10.24KWH/15.36KWH/20.48KWH/25.6KWH/
30.72KWH/40.96KWH/51.2KWH/102.4KWH
Life cycles (80%SOH,25℃ )：4000 Cycles
AC output voltage：240Vac(H-H)/120Vac(H-N)±10% RMS
AC output power：6KW~20KW
PRODUCT CASE
